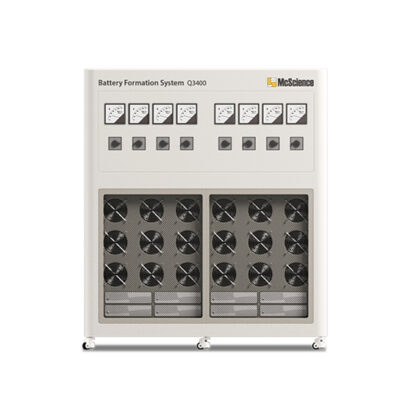

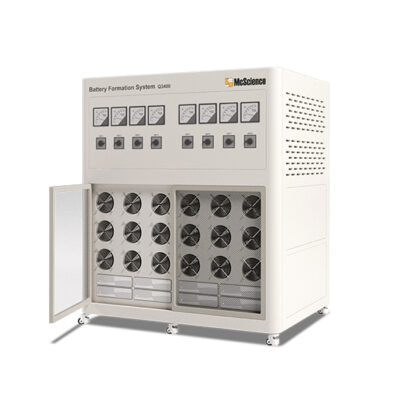

Battery Formation System Q3400 is a multi-channel simultaneous testing device for activating / stabilizing the battery by charging and discharging the battery which has no electrical properties after the assembly process in the secondary battery production process. It can be used as a lithium-ion battery and a harmful facility of various batteries. It is a test device suitable for mass production lines because it can drive several channels at the same time.
Battery Formation
Multi-channel Test
Charge/Discharge & Cycle Test
OCV Test
Regeneration
MES Support
Sequence Builder
System Configuration
System Components
System Frame(1)
System Frame(2)
Formation Tester
Measurement Software
System Specification
■ Hardware
| Channel | Max. 256ch | |
| Operation Mode | CC, CV, CC/CV, OCV, REST | |
| Voltage | Range | 1 ~ 5V |
| Resolution | 16bit | |
| Accuracy | ±0.1% of Full Scale or ±1mV | |
| Current | Range | 100mA ~ 100A (To Be Discussed) |
| Resolution | 16bit | |
| Accuracy | ±0.1% of Full Scale | |
| Control Interval | 100ms ~ 500ms (To Be Discussed) | |
| Communication | System : CAN, GUI : LAN | |
■ Software
| Set Parameter | Operation Mode, End Condition, Safety Condition, Save Condition | |
| Measure Parameter | Time, Voltage, Current, Capacity, Temperature | |
| Control | (Group) Start, Stop, Channel Select (Channel) Start, Stop, Pause, Next |
|
| Monitoring | Status, Total Time, Voltage, Current, Temperature | |
| Data File Format | Excel Compatible CSV Format or etc | |
| Operation Mode | CC, CV, CC/CV, OCV, REST | |
| End Condition | Time, Voltage, Current, Temperature, Capacity, Energy, Power, Delta T, Delta V | |
| Safety Condition (Hardware Protection) | Max./Min. Voltage, Max./Min. Current, Max./Min. Capacity, Max./Min. Temperature | |
| Save Condition | Delta Time, Delta Current, Delta Voltage, Delta Temperature | |
