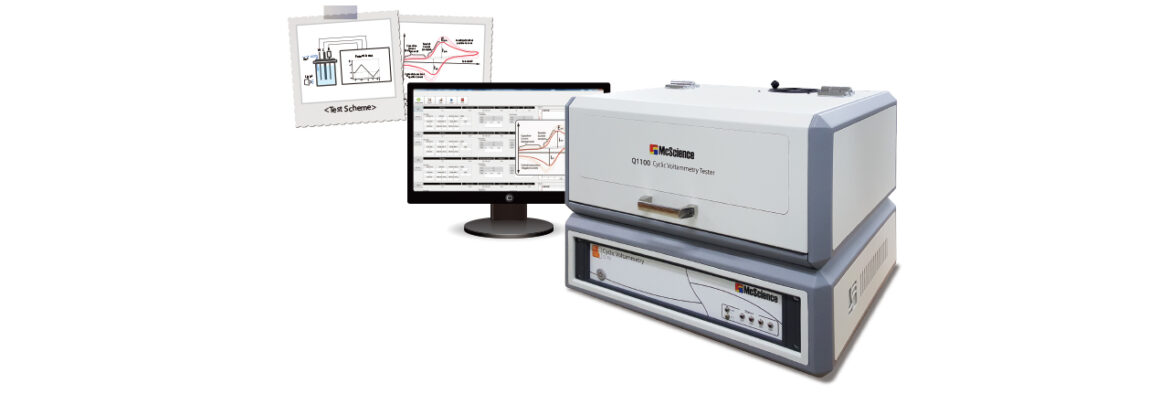

The Cyclic Voltammetry is a basic experiment for the characterization of electrochemical systems. The long-cycle repeated measurement of Cyclic Voltammetry is widely used for quick evaluation of electrochemical materials for the application of devices such as rechargeable batteries, electrochemical double-layer capacitors and photo-electrochemical systems. Q1100 provides multi-channel management capability for efficient measurements of multiple sample devices.
Multi-Channel Cylic Voltammetry
High-Speed Data Acquisition
Sequence Builder
Individual Channel Management
Gas Control & Light Source Options

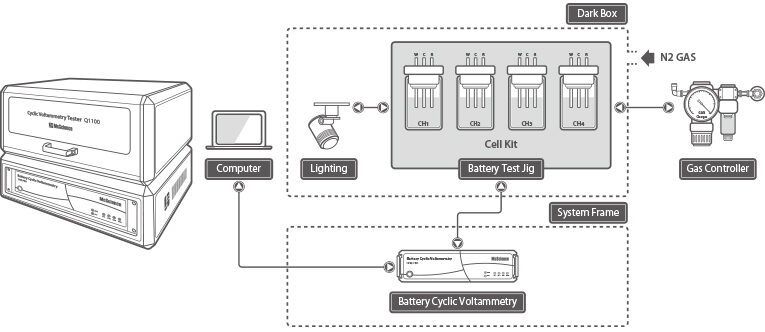

System Configuration
System Components
System Frame
Dark Box/Measurement Unit
Cell Kit/Manipulate Unit/Optional Gas Controller
Test Software
System Specification
| Channel # | 4CH (Independent Configuration) | |
| Test Board # | 1 ea | |
| Mode | Voltage Control, Current Measurement | |
| Output Connection | 2Probe, 3Probe, 4Probe | |
| Voltage Control | Range Capability Resolution Accuracy Stability Scan Rate Frequency Setting Parameter | -10V ~ +10V 10mA 16bit DAC < 0.1% of full scale <0.1%/h after 30 min. warming up 10mV/sec ~ 100V/sec 0.001 ~ 100Hz Voltage Sweep Range, Volatge Step, Scan Rate, Cycle |
| Current Measurement | Configuration Range Resolution Accuracy Stability Sampling Rate Measurement Parameter | Zero Resistance Ammeter 4 Decades (10μA, 100μA, 1mA, 10mA) 16bit ADC < 0.01% of full scale <0.1%/h after 30 min. warming up 40ksps Cycle, Time, Voltage, Current, Epc / Ipc / Epa / Ipa |
| Time | 1sec ~ 65,000 hrs | |
| Measured Data | Voltage, Current, Time | |
| Operating Temperature | 20℃ ~ 30℃ | |
| PC Interface | Serial / LAN | |
| Dimension | 450mm(W) x 300mm(D) x 150mm(H) | |
| Weight | < 10 Kg | |
| Line Voltage | 220V 1Ø 50 ~ 60Hz, <3A | |
