High-speed data acquisition capability of Q3000 Battery Cycle Test System provides advanced feature of collecting battery's time-variant internal resistance during conventional charge/discharge and cycle tests. The Sequence Builder is a powerful tool for efficient design and management of test procedures. The Metadata Compiler is a smart tool for automatic extraction of test parameters and big data analysis.
Charge/Discharge & Cycle Test
High Precision OCV Measurement
DC Internal Resistance
Sequence Builder
Meta Data Compiler
Big Data Manager
System Configuration

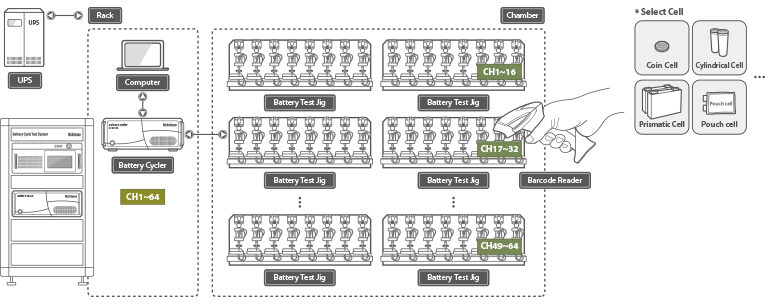

System Components

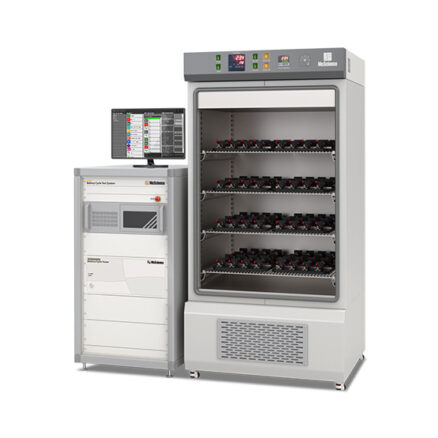

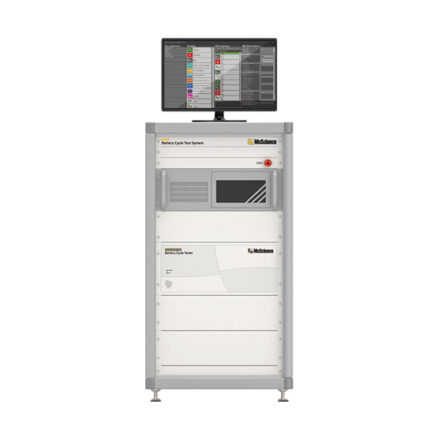

System Frame/Cycler

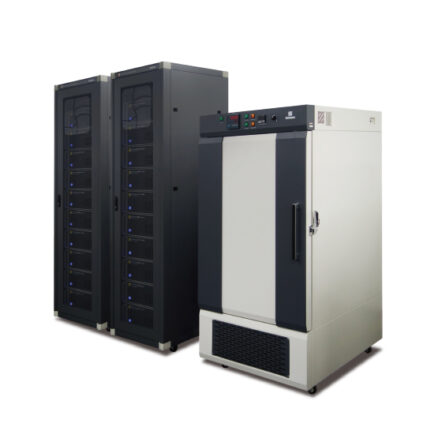

Chamber/UPS
Battery Test Jig

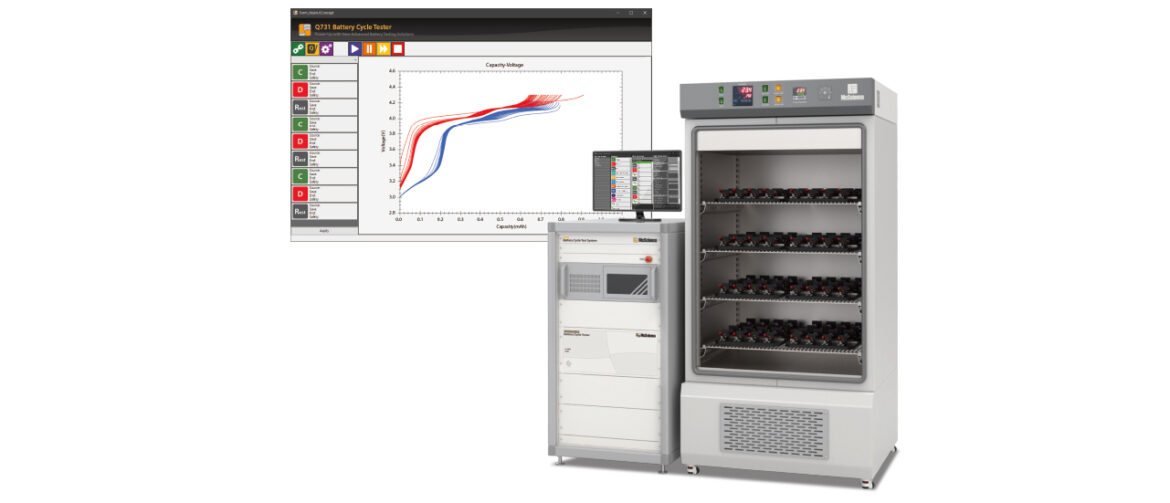

Test Software
System Specification
■ Hardware
| Channel | 64ch (Standard) | ||
| Operation Mode | CC, CC/CV, CP, CR, OCV, Rest | ||
| Connection | 4-Probe | ||
| Size | Rack System:(W)900 x (D)1000 x (H)1400mm, 6U 19" Rack Mountable | ||
| Weight | < 200Kg | ||
| Operating Temperature | 23°C ± 3°C | ||
| Communication | LAN Interface (100Mbps) | ||
| Electricity | 1-phase 100V ~ 240V, 50-60Hz, Max. 400W | ||
| Voltage | Source Range | -5V ~ +5V | |
| Source Resolution | 16bit | ||
| Source Accuracy | ±0.1% of Full Scale | ||
| Measurement Range | -5V ~ +5V | ||
| Measurement Accuracy | ±0.1% of Full Scale | ||
| Current | Configuration | 2 Range Shunt Configuration | |
| Source Resolution | 16bit | ||
| Source Range | 100mA | 10mA | |
| Source Accuracy | ±0.1mA | ±0.01mA | |
| Measurement Range | 100mA | 10mA | |
| Measurement Accuracy | ±0.1mA | ±0.01mA | |
■ Software
| Item | Specification | |
| Model Name | Q730 Battery Cycle Test Software | |
| Set Parameter | Operation Mode, End Condition, Safety Condition, Save Condition | |
| Measure Parameter | Charge/Discharge Characteristics, OCV, DCR | |
| Control | (Group) Start, Stop, Channel Select (Channel) Start, Stop, Pause, Next |
|
| Monitoring | Status, Total Time, Voltage, Current, Temperature(Optional) | |
| Sequence | Max. 100 Line | |
| Data File Format | Q Raw data Format (.qrd) | |
| End Condition | Time, Voltage, Current, Capacity, Energy, Power, Delta V | |
| Safety Condition | Max./Min. Voltage, Max./Min. Current, Max./Min. Capacity | |
| Save Condition | Delta Time, Delta Current, Delta Voltage | |
