Q3000

Battery Cycle Test System

#Charge/Discharge #Cycle Test #DCR #Sequence #Metadata #Big Data


· Charge/Discharge & Cycle Test

· High Precision OCV Measurement

· DC Internal Resistance

· Sequence Builder

· Meta Data Compiler

· Big Data Manager

Product Inquiry

Leaflet Download


Related products

High-speed data aquisition capability of Q3000 Battery Cycle Test System provides advanced feature of collecting battery’s time-variant internal resistance during conventional charge/discharge and cycle tests. The Sequence Builder is a powerful tool for efficient design and management of test procedures. The Metadata Compiler is a smart tool for automatic extraction of test parameters and big data analysis.

Charge/Discharge & Cycle Test

High Precision OCV Measurement

DC Internal Resistance

Sequence Builder

Meta Data Compiler

Big Data Manager

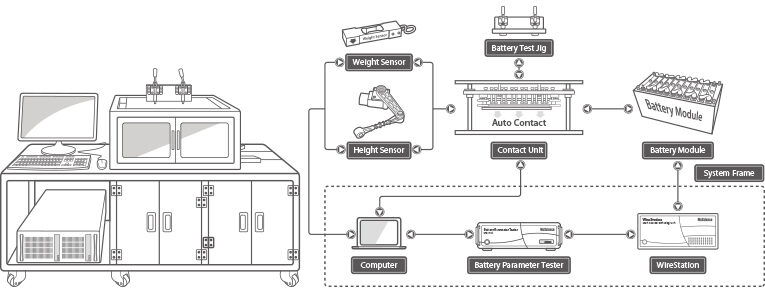

System Configuration

System Components

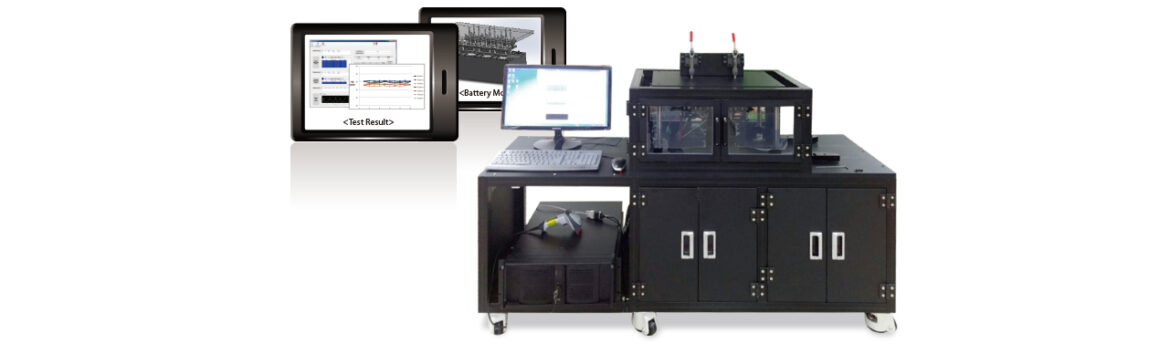

System Frame/Cycler

Chamber/UPS

Battery Test Jig

Test Software

System Specification

Hardware

Channel64ch (Standard)
Operation ModeCC, CC/CV, CP, CR, OCV, Rest
Connection4-Probe
SizeRack System:(W)900 x (D)1000 x (H)1400mm, 6U 19" Rack Mountable
Weight< 200Kg
Operating Temperature23°C ± 3°C
CommunicationLAN Interface (100Mbps)
Electricity1-phase 100V ~ 240V, 50-60Hz, Max. 400W
VoltageSource Range-5V ~ +5V
Source Resolution16bit
Source Accuracy±0.1% of Full Scale
Measurement Range-5V ~ +5V
Measurement Accuracy±0.1% of Full Scale
CurrentConfiguration2 Range Shunt Configuration
Source Resolution16bit
Source Range100mA10mA
Source Accuracy±0.1mA±0.01mA
Measurement Range100mA10mA
Measurement Accuracy±0.1mA±0.01mA

Software

ItemSpecification
Model NameQ730 Battery Cycle Test Software
Set ParameterOperation Mode, End Condition, Safety Condition, Save Condition
Measure ParameterCharge/Discharge Characteristics, OCV, DCR
Control(Group) Start, Stop, Channel Select
(Channel) Start, Stop, Pause, Next
MonitoringStatus, Total Time, Voltage, Current, Temperature(Optional)
SequenceMax. 100 Line
Data File FormatQ Raw data Format (.qrd)
End ConditionTime, Voltage, Current, Capacity, Energy, Power, Delta V
Safety ConditionMax./Min. Voltage, Max./Min. Current, Max./Min. Capacity
Save ConditionDelta Time, Delta Current, Delta Voltage
