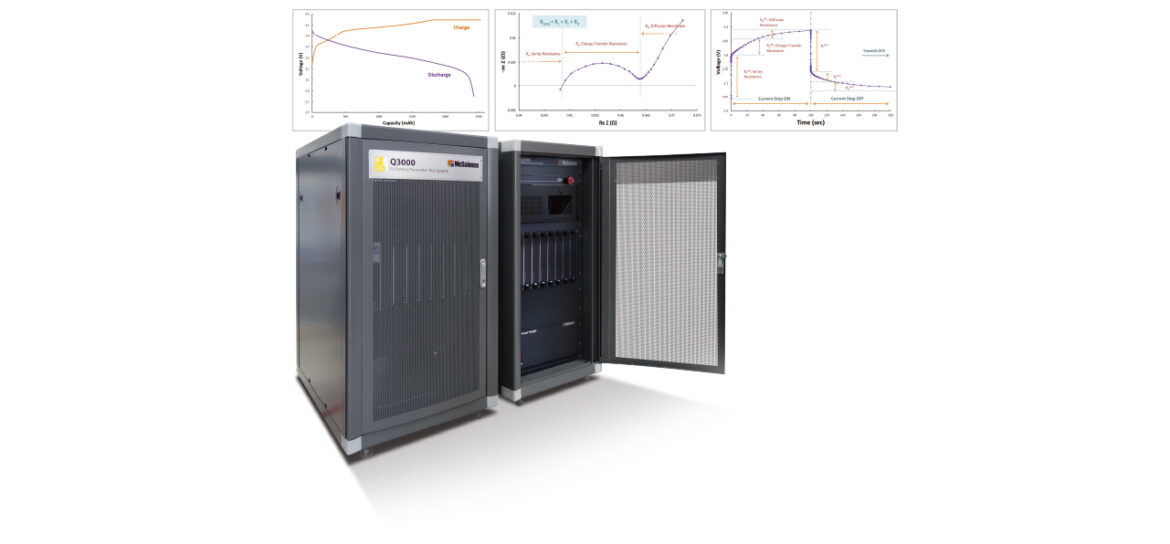

This is a brand-new and all-in-one battery test system including advanced measurement tools such as Transient Response Analysis (TRA) and Frequency Response Analysis (FRA), based on general test framework of rechargeable battery such as charge/discharge and cycle tests. The Suequnce Builder is a powerful tool for efficient design and management of test procedures. The Metadata Compiler is a smart tool for automatic extraction of test parameters and big data analysis.
Charge/Discharge & Cycle Test
High Precision OCV Measurement
AC/DC Internal Resistance
FRA/TRA
Sequence Builder
Meta Data Compiler
Big Data Manager

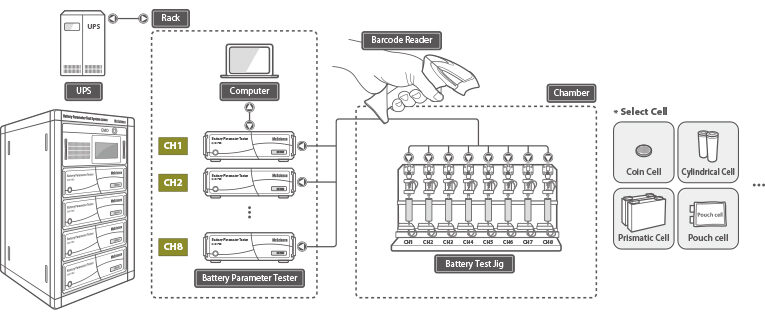

System Configuration
System Components
System Frame
Battery Parameter Tester
Battery Test Jig
Test Software
System Specification
■ Hardware
| Channel | 8Channel | ||
| Configuration | 1Ch per 1subrack | ||
| Size(mm) | (W)900 x (D)1,000 x (H)1,400 | ||
| Weight | < 300kg | ||
| Power | 220V/10A/Ø1 | ||
| Communication | Ethernet | ||
| Connection | 4 wire Kelvin Cable | ||
| Cycle | Control | CC/CV, CC, CP, CR, Pattern | |
| Voltage | Setting range(resolution) | ±5.5V( 550μV) | |
| Reading range(resolution) | ±5.5V( 550μV) ±50mV + DC canceling (5μV) ±10mV + DC canceling (1μV) |
||
| Reading resolution | 550μV, 5μV, 1μV | ||
| Accuracy | ±0.1% of F.S. | ||
| Current | -5A ~ +5A / -500mA ~ +500mA / -50mA ~ +50mA / -5mA ~ +5mA / |
||
| Temperature | Thermocouple K-type (±1℃@-20℃~+85℃, ±2℃@-200℃~+700℃) | ||
| Storage time interval | Minimum 100ms | ||
| Measurement items | OCV, DCR, ACR, FRA, TRA | ||
| TRA | Rise/Fall time | <200μs @ Li-ion 5Ah load, 0->5A ( 10 ~ 90% ) | |
| Time resolution | 1μs | ||
| Sampling time | 100μs ~ 10s | ||
| Voltage accuracy | ±0.1% | ||
| FRA | Output | Current control | |
| Frequency | 1μHz ~ 10KHz | ||
| Resolution | 1μHz @ <1Hz, 100mHz @ ≥1Hz | ||
| Accuracy | ±0.5% | ||
■ Software
| Function | Charge/Discharge Mode, Measurement Mode | |
| Operation Mode | (Set Parameter) Charge/Discharge Mode, End Condition, Safety Condition, Save Condition (Measure Parameter) Charge/Discharge Characteristics, OCV, ACR, DCR, FRA, TRA |
|
| Measurement Mode | (FRA) Nyquist Plot, Bode Plot (TRA) Time vs. Voltage, Time vs. Current, TRA Resistance (ACR) Real Z at 1kHz, Option (1μHz ~ 10KHz) (DCR) R_DC = (V1 - V2) / (l1 - l2), KS C IEC 61960-2 (OCV) Voltage Monitoring |
|
| Sequence Line | Max. 200 Line | |
| Data File Format | Excel Compatible CSV Format (2 Type) - Charge/Discharge Data File - Measurement Data File |
|
| Charge/Discharge Mode | CC/CV, CC, CP, CR | |
| End Condition | Time, Voltage, Current, Temperature, Capacity, Energy, Power, Delta T, Delta V | |
| Safety Condition | Max./Min. Voltage, Max./Min. Current, Max./Min. Capacity, Max./Min. Temperature | |
| Save Condition | Delta Time, Delta Current, Delta Voltage, Delta Temperature | |
