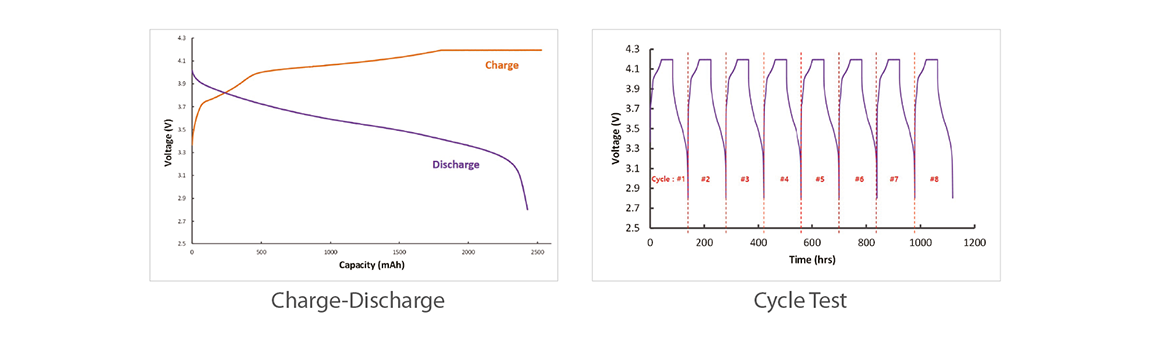

ㆍCharge/Discharge : CC CC-CV CP CR Pattern
ㆍMeasurement : DC AC Step Pulse Ramp

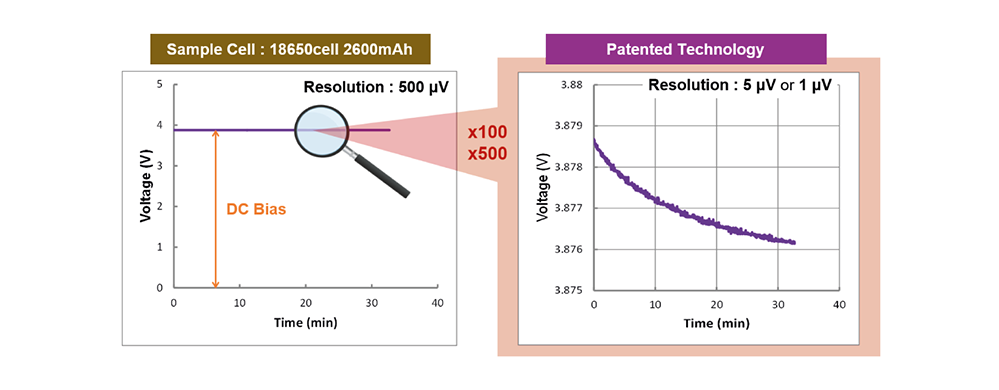

ㆍDC Canceling Technique for 10 μV Resolution of Voltage Measurement
ㆍLogic Circuitary for 10 μsec Simultaneous I-V Measurement

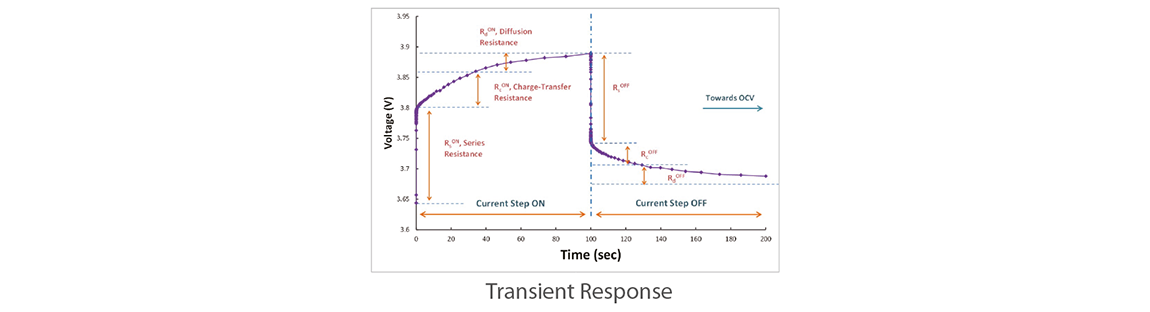

ㆍBattery’s transient response can be obtained by applying current step function to a battery and measuring
voltage response as a function of time and at wide ranges of time scale.
ㆍTime-varying internal resistance can be obtained by subtraction of initial voltage from measured voltage
response and then by dividing constant current value.
ㆍMetadata Compiler automatically extract characteristic parameters from TRA data including internal

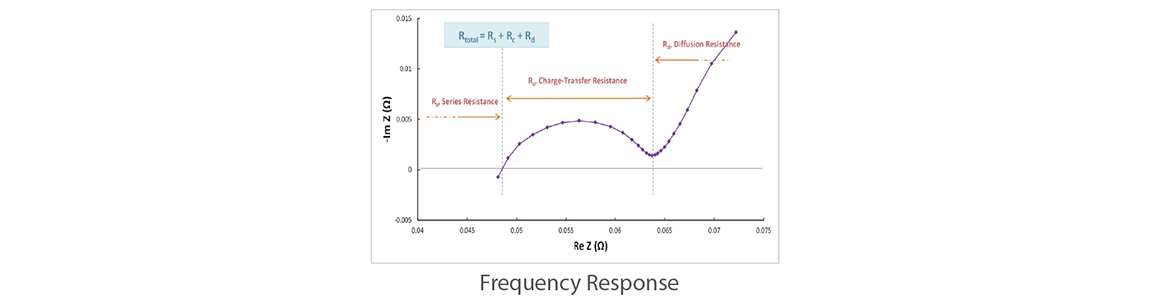

ㆍFrequency response analysis is a set of measurements of complex impedance which can be obtained by
applying sinusoidal current and measuring voltage response as a function of frequency.
ㆍComplex impedance can be plotted as real & imaginary part (Nyquist Plot), and the real part of impedance
indicates frequency-dependent internal resistance of battery.
ㆍMetadata Compiler automatically extract characteristic parameters from FRA data including internal

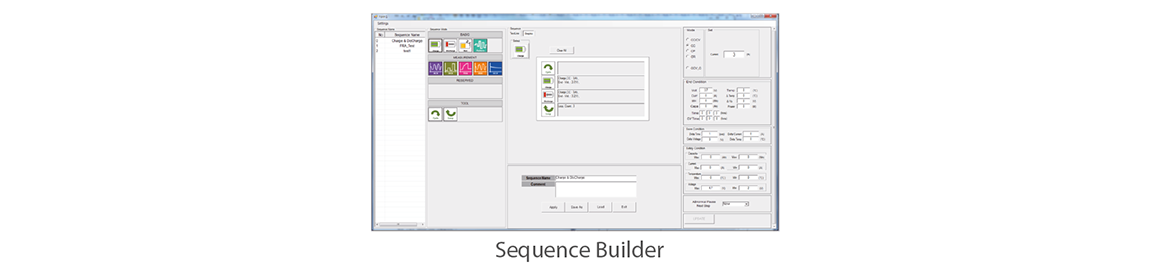

ㆍSequence Builder is a software tool for user’s own battery test sequence programming.
ㆍSequence Builder is useful when multiple measurements are carried out during a full charge/discharge cycle
including TRA, FRA, OCV and internal resistance.

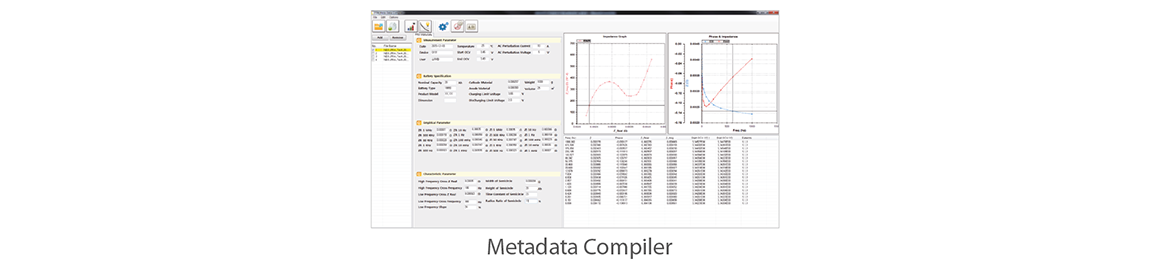

ㆍMetadata Complier is a software tool for automatic parameter extraction from battery measurement data
such as charge/discharge, TRA, FRA, OCV and cycling.
ㆍBattery metadata can be categorized as battery information, measurement conditions, extracted data and
ㆍExtracted battery metadata can be handled as tagged data in data management software.
ㆍUser-friendly Data Viewer & Metadata Handling Software
ㆍBig Data Analysis Algorithm
High-speed data acquisition capability of Q3000 Battery Cycle Test System provides advanced feature of collecting battery’s time-variant internal resistance during conventional charge/discharge and cycle tests. The Sequence Builder is a powerful tool for efficient design and management of test procedures. The Metadata Compiler is a smart tool for automatic extraction of test parameters and big data analysis.
#Charge/Discharge #Cycle Test #DCR/ACR #TRA #Sequence #Metadata #Big Data
This is a brand-new and all-in-one battery test system including advanced measurement tools such as Transient Response Analysis (TRA) and Frequency Response Analysis (FRA), based on general test framework of rechargeable battery such as charge/discharge and cycle tests. The Suequnce Builder is a powerful tool for efficient design and management of test procedures. The Metadata Compiler is a smart tool for automatic extraction of test parameters and big data analysis.
#Charge/Discharge #TRA #FRA #DCR/ACR #Sequence #Metadata #Big Data
Battery Formation System Q3400 is a multi-channel simultaneous testing device for activating / stabilizing the battery by charging and discharging the battery which has no electrical properties after the assembly process in the secondary battery production process. It can be used as a lithium-ion battery and a harmful facility of various batteries. It is a test device suitable for mass production lines because it can drive several channels at the same time.
#Formation #Charge/Discharge #Cycle Test #OCV
Q3500 Battery Inspection System measures the internal resistance and open circuit voltage of a cell. The system displays and classifies the data compared to reference tolerance values for pass/fail conformance. Specially customized test jigs are configured and enable easy and safe tests to various type of cells such as cylindrical, pouch and prismatic battery. For a large-scale production line, Q3500 can be integrated into the automated in-line operating system.
#IR #OCV #TRA #FRA #Automation #In-Line #Cylindrical #Pouch #Primatic
Battery Pack Cycle Test System Q4100 is a high-performance system that can test and evaluate Battery Modules or Battery Packs and can be manufactured as a portable type according to the user’s request. This system is a special system which is composed of a single system of Cycle Test and Cell Balancing Test. It is capable of high current / high voltage test, high speed control, high speed measurement, high speed data storage, various pattern control and cell voltage monitoring.
#Charge/Discharge #Cycle Test #Portable #Cell Balancing #DCR #TRA #Sequence #Metadata #Big Data
Battery Pack Inspection System is for automatic in-line inspection of battery products in large-scae battery production facility. The system can integrate various modular test units for OCV monitoring, battery internal resistance, contact resistance, battery impedance, insulation test, optical inspection, weight and size Measurement, and all automation periperals such as loading/unloading unit and test jig.
#Product Inspection #In-Line Automation #OCV #xEV Battery #Cell/Module Inspection #DCR/ACR #Contact Resistance #Insulation Test
The Cyclic Voltammetry is a basic experiment for the characterization of electrochemical systems. The long-cycle repeated measurement of Cyclic Voltammetry is widely used for quick evaluation of electrochemical materials for the application of devices such as rechargeable batteries, electrochemical double-layer capacitors and photo-electrochemical systems. Q1100 provides multi-channel management capability for efficient measurements of multiple sample devices.
#Cyclic Voltammetry #Multi-Channel
