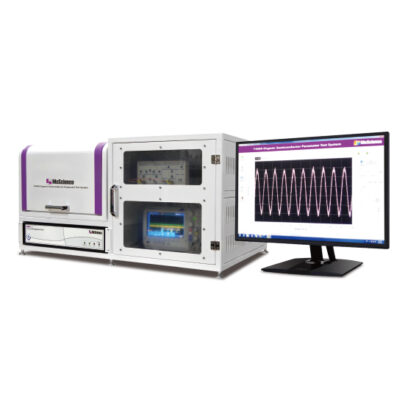

The optoelectronic characterization of organic semiconductor layer is substantially important in applications for organic photo- voltaics(OPV) and organic light emitting diode (OLED), and T4000 Organic Semiconductor Parameter Test System performs various experiments based on LED light source and high-speed measurement electronics in order to obtain carrier lifetime, carrier mobility, diffusion coefficient and other characteristic parameters.
Transient Photovoltage (TPV) / Transient Photocurrent (TPC)
Charge Extraction (CE) / Dark/Photo Charge Extraction by Linearly Increasing Voltage (CELIV)
I-V Characteristics

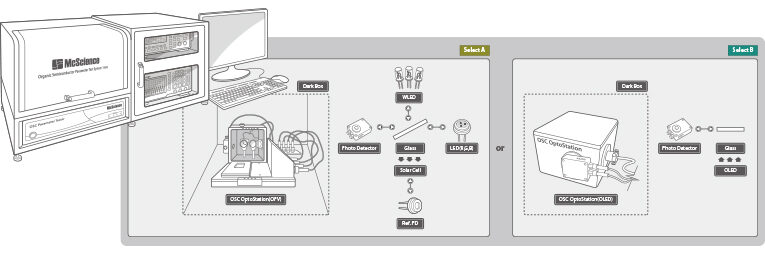

System Configuration
System Components

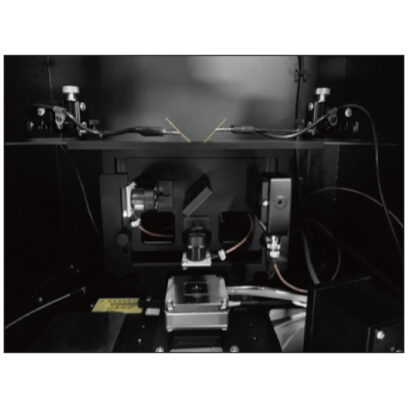

OptoStation : Solar Cell
OptoStation : OLED
Oscilloscope/OSC Parameter Tester
OSC Parameter Test Software
System Specification
| Model Name | T4000 Organic Semiconductor Parameter Test System | |
| System Configuration | Main Frame, T104 OSC Parameter Tester, Oscilloscope, Optostation, Signal Amplifier, Cables, Software, PC | |
| Dimension / Weight / Electricity | Dimension : (W)930 mm X (D)470 mm X (H)480 mm / Weight(kg) : 100kg / Utility : 220V, 15A | |
| Test Sample | Solar Cell | OLED |
| Test Recipe | TPV, TPC, CE, CELIV | I-V-L, T-EL |
| Response Time | LED Light On/Off Time : > 500ns | PD Detector Response Time : > 10ns |
| Signal Sampling Rate | Max. 1GS/sec | Max. 1GS/sec |
| Memory Depth | 1Mega Point | 1Mega Point |
| Bias Voltage | -10V ~ +10V | -10V ~ +10V |
| Voltage Rising/Falling Time | Min. 20ns @ No Load | Min. 20ns @ No Load |
