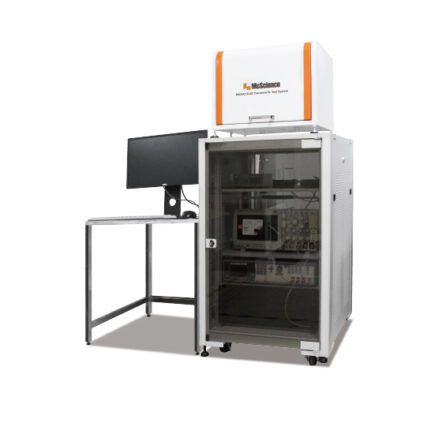

M6200 OLED Transient EL/PL Test System

High Accuracy and Enhanced Performance for Transient Response Measurement of OLED

M6200 OLED Transient EL/PL Test System is designed to measure transient response characteristics of OLED device such as transient electroluminescence, time resolved photoluminescence. As excitation source, transient EL test system uses the electrical pulse generator, while time resolved PL test system uses the high speed pulse laser. It is useful tool to study charge carrier dynamics such as charge mobility, response time and carrier lifetime.

Transient Electroluminescence

Time Resolved Photoluminescence

Low Temperature Measurement

Spectroscopy Measurement

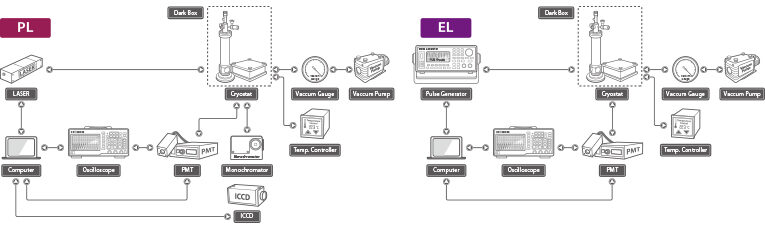

System Configuration

System Components

Pulsed Laser for Tr-PL/Function Generator for Tr-EL

Oscilloscope/Signal Amplifier

Photo Multiplier Tube & Power Supply

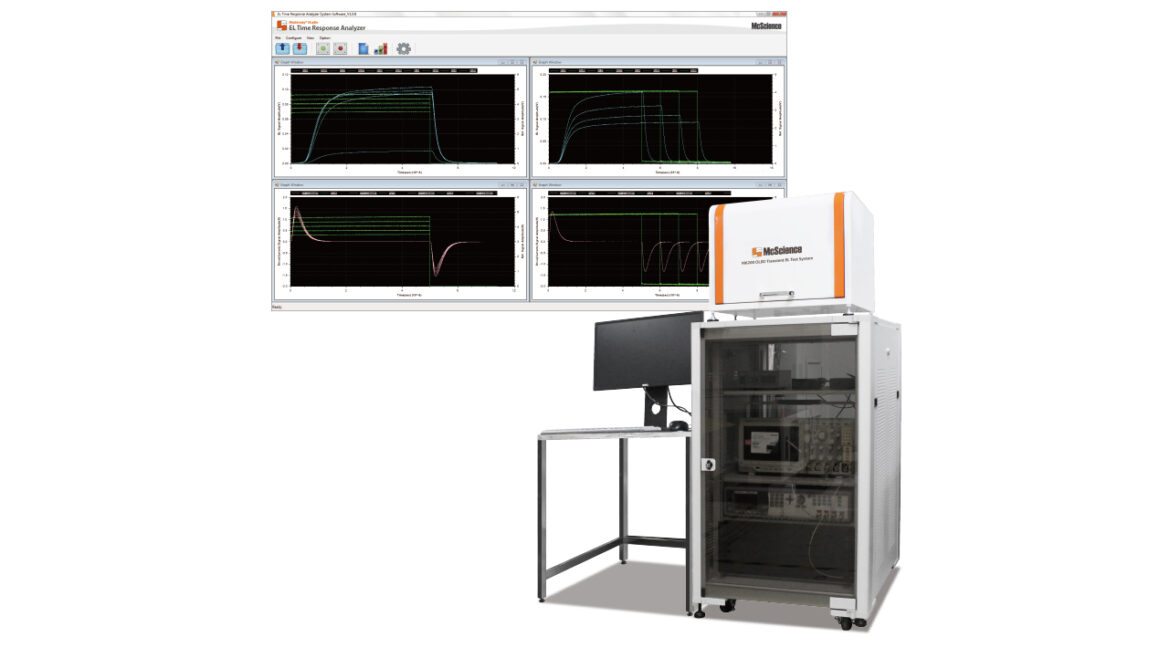

OLED Transient EL/PL Software

System Specification

Product NameM6200 OLED Transient EL/PL Test System
FunctionTransient Electroluminescence Measurement (T-EL Option)
Time Resolved Photoluminescence Measurement (T-PL Option)
Pulse Generator
(for T-EL)		Frequency1uHz ~ 10MHz
Amplitude / DC Offset1mVpp to 10Vpp into 50ohm / ±5V into 50ohm
TriggerSingle / Continuous / Burst Mode
Laser
(for T-PL)		TypePulse Laser
Wavelength349nm, 351nm, 355nm (*Customer Choice)
Average Output Power150mW (*It is subject to change due to laser model)
Pulse Duration10-20ns (*It is subject to change due to laser model)
OscilloscopeOscilloscope Bandwidth500MHz
Oscilloscope Sampling Rate5GSa/s
Light DetectorPhoto Multiplier Tube with 1nsec Rise Time
I-V Converter (Signal Amplifier)50ohm Load Resistor or Preamplifier with 200MHz Bandwidth and 1.8ns Rise Time
Temperature OptionCryostat System using Liquid Nitrogen (Temperature Range : 77K ~ 690K)
