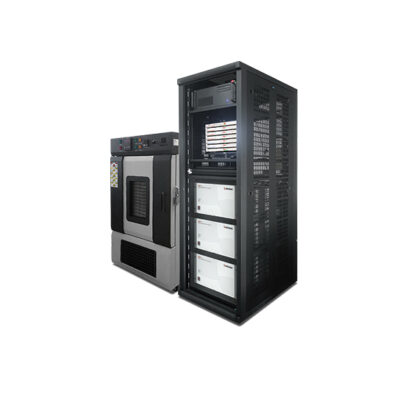

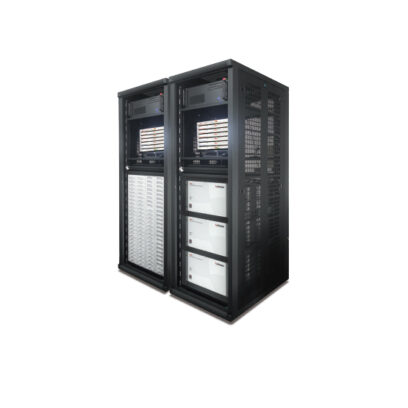

M6000 PLUS
OLED Lifetime Test System
#OLED #Lifetime #I-V Scan #Multi-Channel #Luminance/CIE #Recipe/Sequence/Eigen Plot
· Relative Lifetime Test
· Aging Test
· Multi Current / Photocurrent Range
· Sequence Operation with multiple Recipe
· Acceleration Test using Thermal Chamber
Related products
All Optimized for Multi-channel Power Driving Lighting and Measurement of OLED Lifetime
M6000 PLUS OLED Lifetime Test System is used to test the capability of OLED materials to withstand the continuous electrical source or environmental changes between high/low temperature, and therefore understands the chemical changes or physical damages caused by degradation in the designated time. It is applicable to OLED unit cell, module, panel. The lifetime test result can be used as a reference or basis for OLED material improvement and better quality.
Relative Lifetime Test
Aging Test
Multi Current / Photocurrent Range
Sequence Operation with mutiple Recipe
Acceleration Test using Thermal Chamber

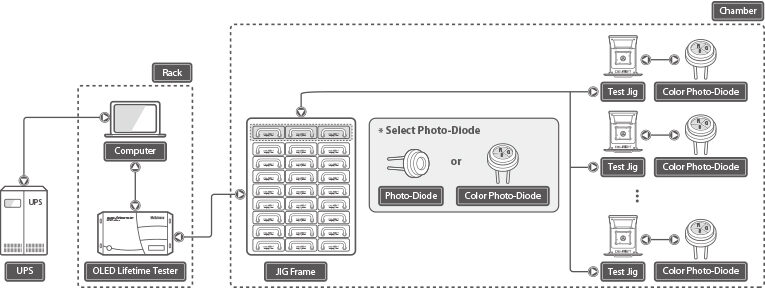

System Configuration

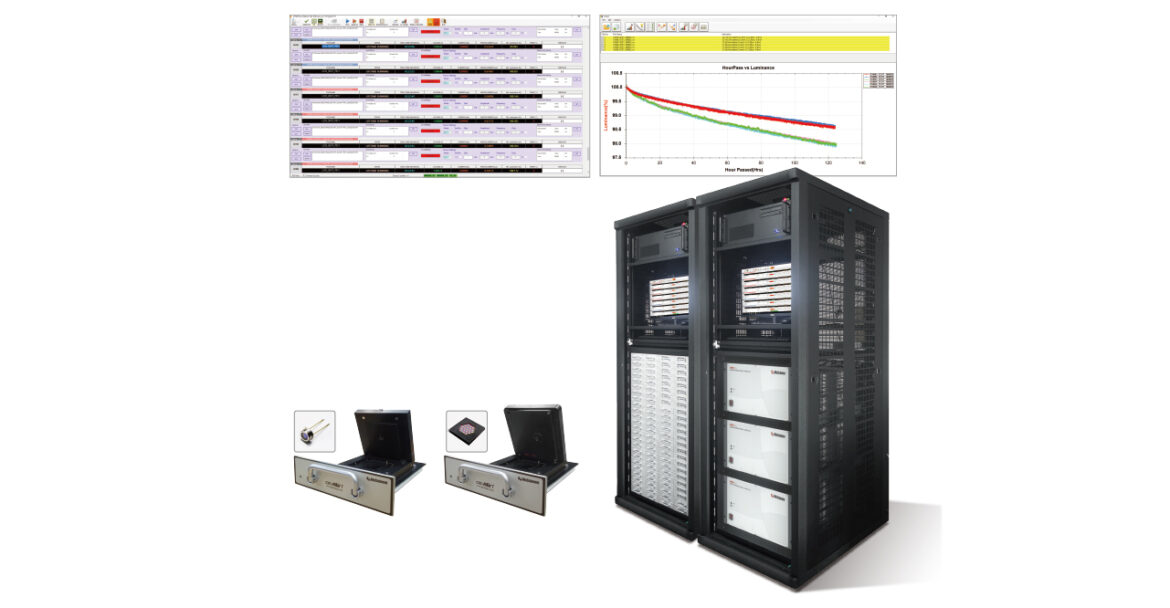

System Components
OLED Lifetime Tester
Test Jig & JIG Frame
ThermoStation/Chamber/UPS
OLED Lifetime Test Software
System Specification
| Product Name | M6000 PLUS OLED Lifetime Test System | |
| Function | Lifetime Test, Aging Test, IV Scan during Lifetime Test | |
| Capacity | 32ch / Unit | |
| Output Mode | CV, CC, PV, PC, PCV | |
| Voltage | Range | ±20V |
| Accuracy | ±0.05% + 10mV (F.S.R.) | |
| Current | Range | [Range 1] ±1mA / [Range 2] ±10mA (Auto 2-Range Shunt Type) |
| Accuracy | [Range 1] ±0.05% + 1uA (F.S.R.) / [Range 2] ±0.05% + 10uA (F.S.R.) | |
| Photocurrent | Range | [Range 1] 0uA~10uA / [Range 2] 0uA~100uA / [Range 3] 0uA~1mA (Auto) |
| Accuracy | [Range 1] ±0.05% + 5nA (F.S.R.) / [Range 2] ±0.05% + 10nA (F.S.R.) / [Range 3] ±0.05% + 50nA (F.S.R.) | |
| Pulse | Frequency Range | 10 ~ 256Hz / 1Hz Step |
| Duty | 1 ~ 99% / 1% Step | |
| Measurement Item | Time, Voltage, Current, Photo-Current, Luminance, CIE | |
| Data Backup | Automatic Data Backup in HW Memory in case of SW Disconnection | |
| Interface | LAN | |
