M6000 PIXX
Imaging & Lifetime Test System
#Multi-Channel #Imaging #Uniformity #Lifetime # Auto-Focusing #V(λ) Filter
· Display Cell / Panel / Module
· Scalable Multi-Channel Test System
· Lifetime Test / Uniformity / Aging / I-V Scan
· Imaging Test / 9-section Analysis / SSIM
· Auto-Focusing / V(λ) Filter
· CC / CV / PC / PV / PCV Operation
· Thermal Chamber / ThermoStation
Related products

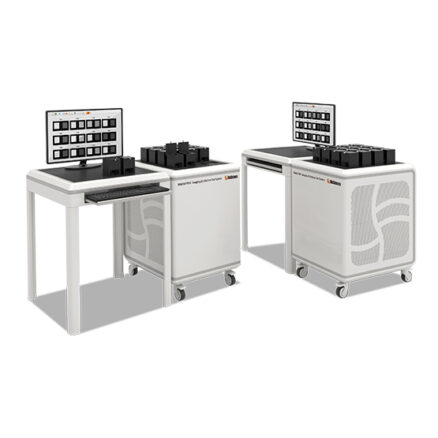

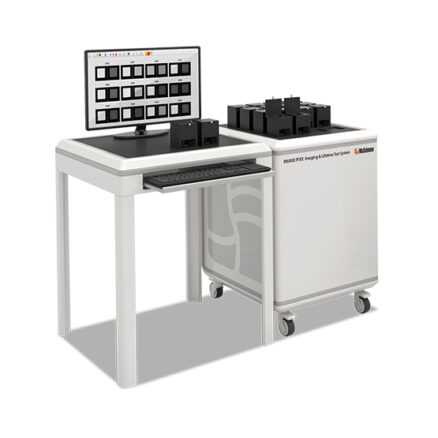

M6000 PIXX Imaging & Lifetime Test System periodically measures the electroluminescence image while driving display devices such as OLED, QLED, Micro and Mini LED, and evaluates the variation of luminance, structural deformation and uniformity through the device life cycle, in addition to the conventional display device lifetime tests including voltage and current measurement.
Special features are :
· Scalable multi-channel system for the long-term imaging & lifetime measurements of display devices
· Compact 12-bit high-resolution imaging unit built in each test channel with V(λ) Filter and fast auto-focusing module
· Various luminescence uniformity analysis including standard 9-Section non-uniformity and structural similarity (SSIM)
Display Cell / Panel / Module
Scalable Multi-Channel Test System
Lifetime Test / Uniformity / Aging / I-V Scan
Imaging Test / 9-section Analysis / SSIM
Auto-Focusing / V(λ) Filter
CC / CV / PC / PV / PCV Operation
Thermal Chamber / ThermoStation
System Configuration
System Components

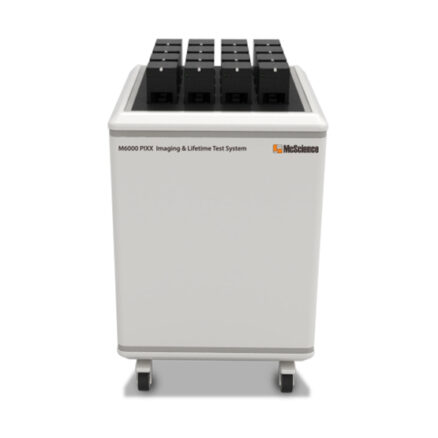

OLED Lifetime Tester
Test Jig & Base Frame
ThermoStation/Chamber Type
Imaging & Lifetime Test Software
System Specification
| Product Name | M6000 PIXX Imaging & Lifetime Test System | ||
| Measurement Item | Time, Voltage, Current, Image, Uniformity, Relative Luminance | ||
| Standard Capacity | 16ch / Set (Standard) | ||
| Electrical Operation Mode | CV, CC, CL, PV, PC, PCV | ||
| Imaging | Sensor Resolution | CMOS Imaging Sensor 640 x 480 Pixel | |
| FOV / WD | 5mm x 4mm / 32mm (Auto-Focusing Function / Intensity Resolution : 12bit) | ||
| Measurement Luminance Range | 0 ~ 3,000nit ( Standard A Light Source / Range is variable by user defined value) | ||
| Spectral Responsivity | CIE Photopic Luminous Function Filter | ||
| DC | Item | Voltage | Current |
| Range | ±20V | [Range 1] ±1mA / [Range 2] ±10mA (Auto 2-Range Shunt Type) | |
| Accuracy | ±0.05% + 10mV (F.S.R.) | [Range 1] ±0.05% + 1uA (F.S.R.) / [Range 2] ±0.05% + 10uA (F.S.R.) | |
| Pulse | Frequency Range | 10 ~ 256Hz / 1Hz Step | |
| Duty | 1 ~ 99% / 1% Step | ||
| Data Backup | Automatic Data Backup in HW Memory in case of SW Disconnection | ||
| Interface | LAN and USB Interface | ||
| Option | Temperature Chamber (Typically, 25 ~ 85°C Range), Thermostation (4ch/unit Standard), Image Analysis Software, UPS | ||
