L6100

Lighting Device Quantum Efficiency Measurement System

#QE #Luminous Efficiency #Power Efficiency #Spectrum

· EQE(External Quantum Efficiency)

· MeasurementElectrical & Optical Measurement

· Luminous Efficiency, Power Efficiency, Chromaticity coordinate

· EL Spectrum/Voltage, Current, Current Density

Product Inquiry

Leaflet Download

Related products

L6100 Lighting Device Quantum Efficiency

Measurement Syste

Product Information

System Configuration

System Components

System Specification


EQE(External Quantum Efficiency)

MeasurementElectrical & Optical Measurement

Luminous Efficiency, Power Efficiency, Chromaticity coordinate

EL Spectrum/Voltage, Current, Current Density

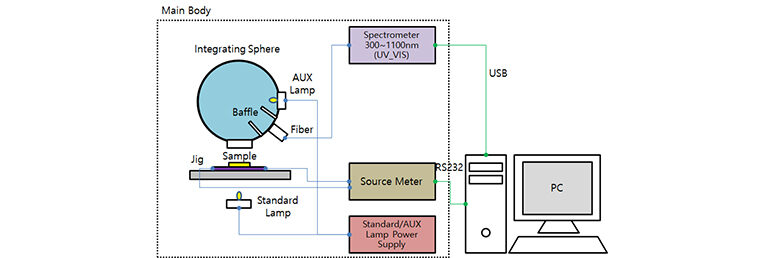

System Configuration

System Components

Spectrometer

AUX Lamp/Power Supply/Integrating Sphere

Sourcemeter/Test Jig

Software

System Specification

Model NameL6100 Lighting Device Quantum Efficiency Measurement System
ConfigurationMain Frame, Sourcemeter Unit, Spectrometer, JIG, Cables, Software, PC
Integrating SphereSpectraflect Coated 3.3 Inch with Customized Ports (A, B, C)
Moving Stage100mm Manual Stage
Wavelength Range300nm ~ 1100nm
Resolution1.5 FWHM
Integral Time1.1msec ~ 1minutes
Optical InputOptical Fiber with SMA Connector
Sweep Interval TimeMin. 100msec
Voltage Source Range-20V ~ +20V
Current Measurement Range-1.0A ~ 1.0A
Sample TypeBottom (to be discussed for TOP)
Pin Contact2 Point Probe, Pogo Pin
Electrical ConnectionBack Side Banana Jack
Internal CoatingBaSO4 Coating with Binder

*The above specification is subject to change according to the customer requirements.
