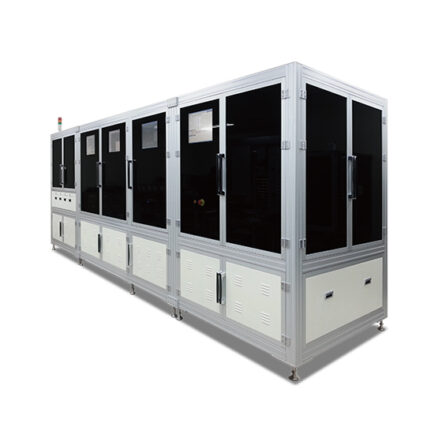

In-Line Automatic Inspection and Cell Sorting
This system provides total solution for in-line solar cell inspection and automatic sorting based on I-V test, luminance imaging and optical inspection.

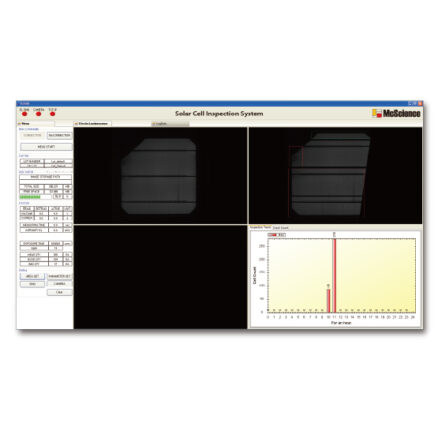

Automatic Cell Inspection

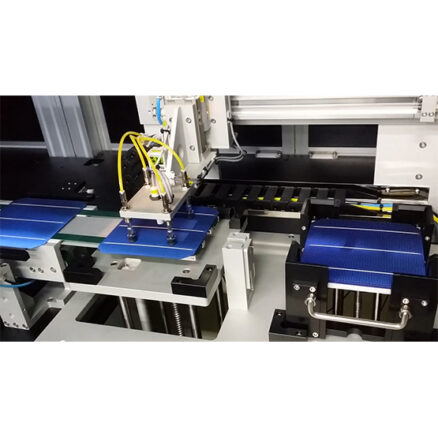

Automatic Cell Sorting
I-V Test Using AAA Solar Simulator
Electroluminescence Imaging
Automatic Optical Inspection
System Configuration
Efficiency vs Crack
System Specification
| Model Name | K3500 Solar Cell In-Line Inspection System |
| System Model | ELX : EL Measurement PLX : PL Measurement WFX : AOI+I-V+EL/PL |
| System Configuration | Loader, AOI(Vision), K3000 I-V System K3300 Imaging System, Unloader, Sorting |
| System Tact Time | 1,200EA per 1hour |
| Measurement | Voltage, Current, Temperature, Irradiance (Ref), Mircro Crack, Hot Spot, Finger Defect, Dark Area, Isc Mapping, Relative Efficiency, Color, Vision |
| Dimension | (W)5350mm x (D)1400mm x (H)2130mm |
| Test Sample | Si Solar Cell |
