K3300

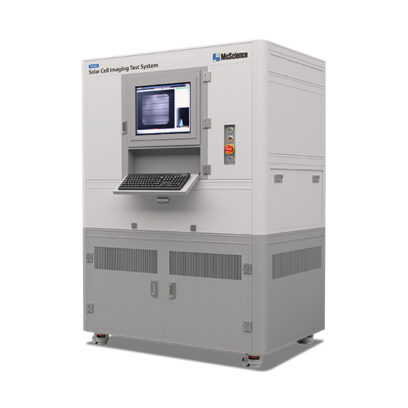

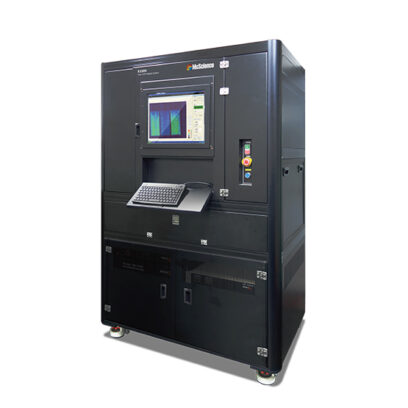

Solar Cell Imaging Test System
#EL #PL #LBIC #Defect Detection #Deep Learning #Portable
· Electroluminescence Imaging
· Photoluminescence Imaging
· Light Beam Induced Current Imaging
· Si, Pervoskite, Tandem Imaging
· Automatic Detection of Microcrack, Dark Area & Finger Defect
Related products
Solar Cell Inspection Tool Using Luminescence Imaging and Laser Scanning
This system provides various imaging test solutions such as electroluminescence, photoluminescence, thermal imaging, and light beam induced current measurement for inspection of solar cell’s internal defects and device failures.
Electroluminescence Imaging
Photoluminescence Imaging
Light Beam Induced Current Imaging
Si, Pervoskite, Tandem Imaging

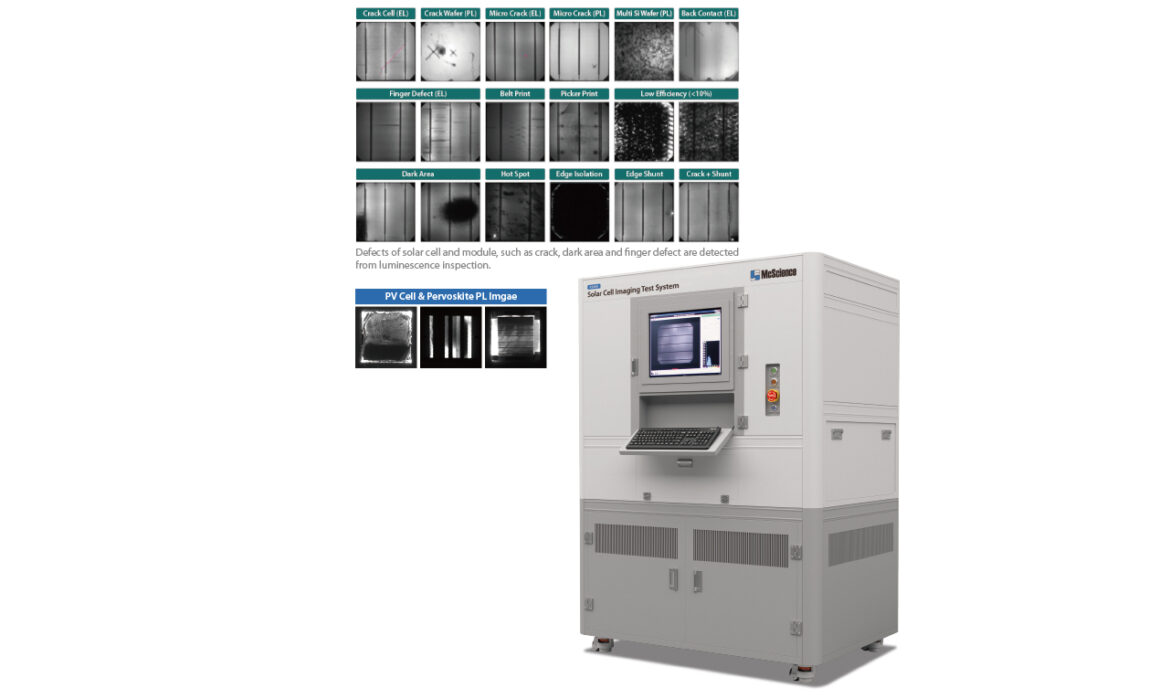

Automatic Detection of Microcrack, Dark Area & Finger Defect

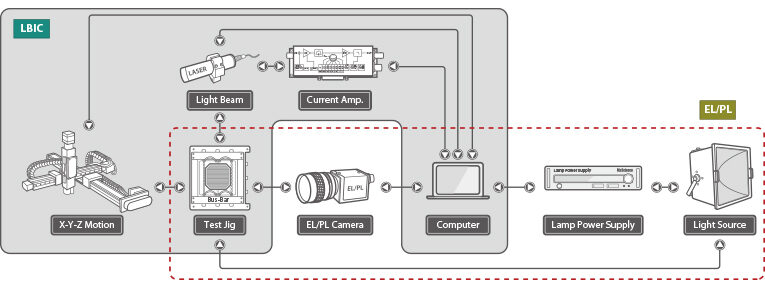

System Configuration
System Components
Imaging Kit
Photovoltaic Powermeter/LD Driver
LED850 / Laser / PLC
Test Software
System Specification
| Model Name | K3300 Solar Cell Imaging Test System |
| System Model | ELX : EL Measurement / PLX : PL Measurement / EPLI : EL+PL / EPLB : EL+PL+ LBIC Measurement / Portable |
| System Configuration | K301 Camera Set, [K103 ELX DC Power Supply : Using ELX], [K310 LD Driver, LED, LASER : Using PLX], Main frame, Box Table |
| [Motion : Using Semi Auto ELX], Controller, PC, ACC | |
| Measure Time | EL : <1sec, PL : <1sec, LBIC : 2 hour (6” Cell) |
| Measurement | Mircro Crack, Hot Spot, Finger Defect, Dark Area, Isc Mapping, Relative Efficiency |
| Dimension | ELX & PLX - [Size : (W) 600mm x (d)1,000mm x (H) 1,800mm / Weight : <100Kg / Utility : 200V, 15A, Air 6 Bar] |
| EPLI & EPLB - [Size : (W) 1,200mm x (d) 1,000mm x (H) 1,800mm / Weight : <300Kg / Utility : 200V, 15A, Air 6 Bar] | |
| Test Sample | Si , Pervoskite, Tandem etc |
