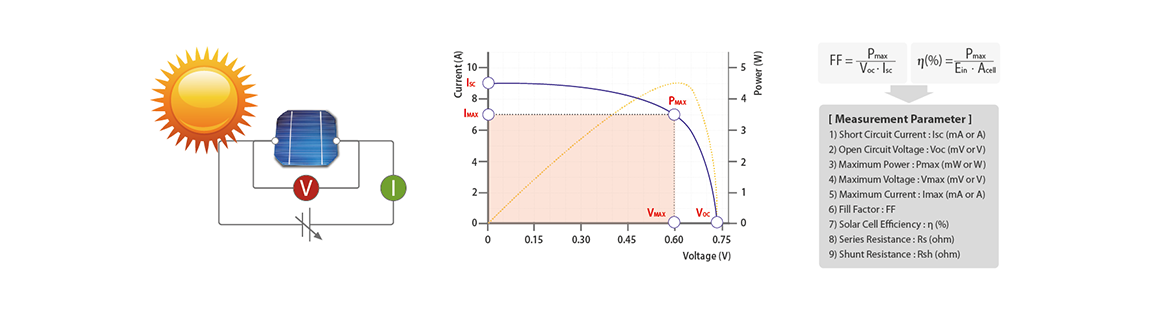

Solar cell efficiency is the ratio of the electrical output of a solar cell to the incident energy in the form of sunlight. The energy conversion efficiency (η) of a solar cell is the percentage of the solar energy to which the cell is exposed that is converted into electrical energy.

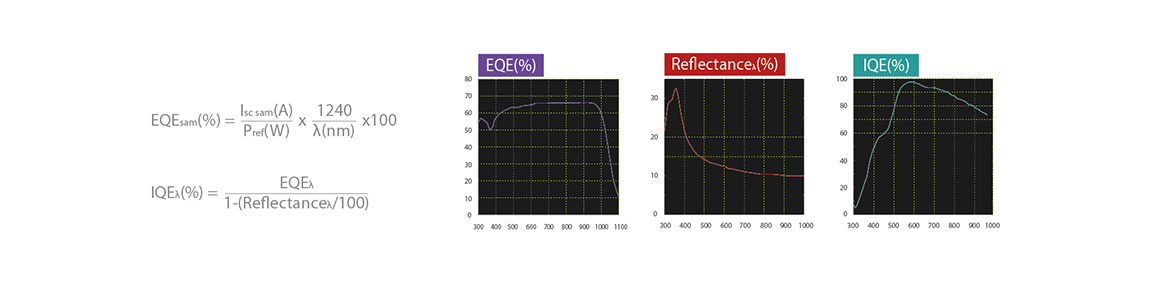

The ratio of incident photons to collected electrons in output current is calculated as external quantum efficiency of solar cell based on standard spectral response measurement. Optional instruments allows reflectance measurement and internal quantum efficiency measurement.

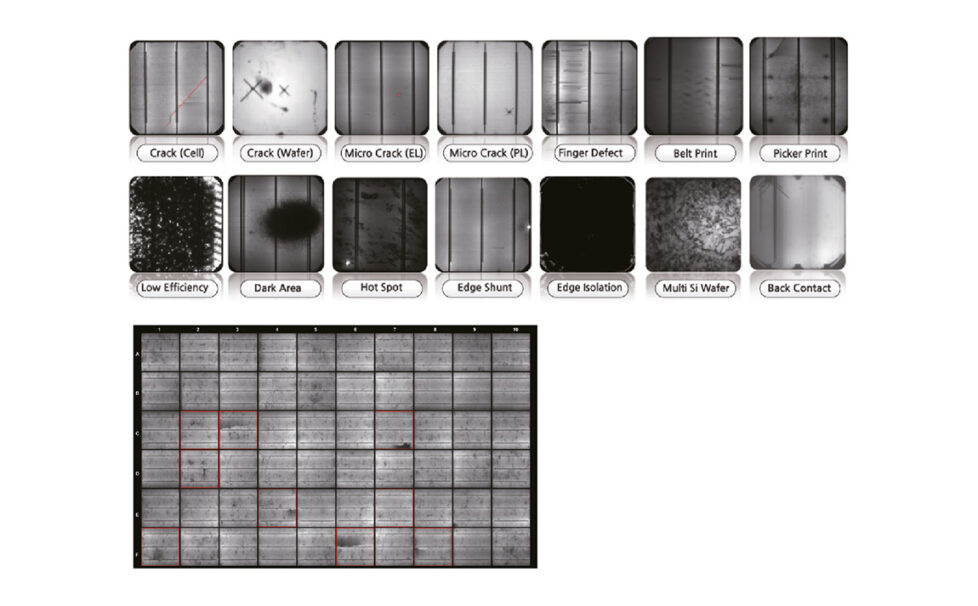

Defects of solar cell and module, such as crack, dark area and finger defect are detected from luminescence inspection
Standard Test Equipment for Solar Cell Conversion Efficiency Measurement
This system provides total package for standard measurement of solar conversion efficiency including solar simulator with various irradiation area, photovoltaic powermeter with various current range, test jig and measurement software.
#Solar Simulator #I-V Test #Solar Efficiency #MPPT #LID
Standard Test Equipment for Solar Cell Quantum Efficiency Measurement
The ratio of incident photons to collected electrons in output current is calculated as external quantum efficiency of solar cell based on standard spectral response measurement. Optional instruments allows reflectance measurement and internal quantum efficiency measurement, and automatic positioning.
#Spectral Response #EQE #IQE #NIR #DC/AC
Solar Cell Inspection Tool Using Luminescence Imaging and Laser Scanning
This system provides various imaging test solutions such as electroluminescence, photoluminescence, thermal imaging, and light beam induced current measurement for inspection of solar cell’s internal defects and device failures.
#EL #PL #LBIC #Defect Detection #Deep Learning #Portable
Long-Term Reliability Test Under Various Irradiation & Thermal Conditions
This system provides combined environment of temperature & humidity control chamber with solar simulator, which enables long term test of solar cell with periodic measurement of efficiency under device aging at various environemental conditions.
#Solar Simulator #I-V Parameter #LID #Long Term #MPPT #Temperature #Humidity
Test equipment for measuring large area solar module conversion efficiency
The system provides a total package for standard measurements of solar conversion efficiency, including simulators for large area solar module inspection, solar power meters with various current ranges, test jigs and measurement software.
#Module Solar Simulator #Class AAA #I-V Test #Solar Efficiency
#EL #PL #Defect Detection #DCR #In-Line
