MOTiV 520M
IV Analyzer
#Voltage Source Current Measure (VSCM) #Current Source Voltage Measure (CSVM)
#4-Quadrant Operation # I-V Characteristicse #AUX Channel
· ±200V Voltage Range, ±1A Current Range
· Max. 20W Output
· 100uV Voltage Resolution, 100fA Current Resolution
· Setting and Control of Compliance
· Selectable 2-Wire of 4-Wire Signal Connection
· Max. 1V / 10mA AUX Channel
· Various Touch Panel Interface
· LAN / USB Communication Control (Wireless Optional)
Product information

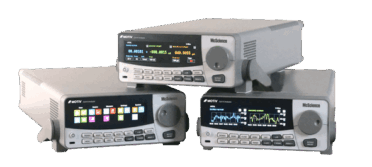

The 520M IV Analyzer is a general-purpose source meter capable of sourcing voltage(current) and measuring current(voltage) with 4-quadrant operation for simultaneous real-time sourcing, sinking, and measurement. Its multi-range architecture andautomatic compliance protection enable stable I-V characterization of advanced electronic devices and materials, while thebuilt-in photocurrent measurement channel supports optical measurements during electrical testing.
High-Precision Sourcing & Measurement
The MOTiV 520 is a high-precision source meter operating across a ±200V voltage and ±1A current range with 100μV / 100fA resolution. With four operating modes — VSCM, VSVM, CSVM, and CSCM — it freely sources and measures both voltage and current, reading the source voltage/current and the AUX channel (up to 1V / 10mA) simultaneously on a single screen. Compliance settings let you cap output to protect the device under test, while selectable 2-Wire and 4-Wire connections preserve accuracy even in fine measurements.
Flexible Graphic Touch Display
The front panel features a graphic touch display whose layout adapts freely to the measurement at hand. You can show a single large reading; two or three values at once — source, main measurement, and AUX — as numeric readouts; a numeric value paired with a live waveform; or the source and measurement waveforms side by side. Waveforms can be zoomed in and out, and results can also be reviewed in a time-stamped table view. Set parameters directly on the touchscreen, reach frequently used functions through dedicated physical keys, or fine-tune values with the dial.
Versatile Measurement Software
The measurement software supports DC measurement for applying fixed conditions, Sweep measurement for stepping through conditions to trace device characteristics, and Transfer Curve measurement for transistors. Data is captured in a measurement buffer of over 250,000 samples for immediate on-screen I-V review, and connects to a PC via LAN or USB (wireless optional) for management. A built-in photo sensor measurement capability also lets you evaluate optical characteristics alongside electrical measurements on a single instrument.
Application
Option
Triaxial Cable
I-V-L JIG
Probe Station
Shield Box
Switching Unit
I-V-L Software
System Specification
| Item | General Specification |
| Model Name | MOTiV 520 |
| Port Configuration | Triax 4-Wire, 1ch Aux Input, Digital I/O Trigger |
| Operation Mode | 4-Quadrant Operation, VSCM / VSVM / CSVM / CSCM |
| Memory Buffer | Set List : Max. 10,000 Points, Measurement Buffer : > 250,000 Samples |
| Control Mode | Manual (Touch Panel and Knob Key) / Remote Control |
| Remote Interfaces | Ethernet or USB |
| Size / Weight | 213mm(W) x 403mm(D) x 88.1mm(H) / 3.73Kg |
| Power Requirements | 100~240VAC, Φ1, 50/60Hz, Max. 150VA |
| Accessories | Triaxial to Crocodial Cable, Bundle Software, LAN Communication Cable, Power Cable, User Manual |
| Source Specification | Measurement Specification | ||||||
| Voltage | Range (±) | Resolution | Accuracy ± (% setting + volts) | Voltage | Range (±) | Resolution | Accuracy ± (% reading + volts) |
| 200 mV | 5 uV | 0.02% + 400 μV | 200 mV | 100 nV | 0.015% + 200 μV | ||
| 2 V | 50 μV | 0.02% + 600 μV | 2 V | 1 μV | 0.015% + 300 μV | ||
| 20 V | 500 μV | 0.02% + 5 mV | 20 V | 10 μV | 0.015% + 5 mV | ||
| 200 V | 5 mV | 0.02% + 50 mV | 200 V | 100 μV | 0.015% + 50 mV | ||
| Current | Range (±) | Resolution | Accuracy ± (% setting + amps) | Current | Range (±) | Resolution | Accuracy ± (% reading + amps) |
| 20 nA | 1 pA | 0.15% + 10 pA | 20 nA | 20 fA | 0.15% + 6 pA | ||
| 100 nA | 5 pA | 0.06% + 50 pA | 100 nA | 100 fA | 0.06% + 40 pA | ||
| 1 μA | 50 pA | 0.03% + 700 pA | 1 μA | 1 pA | 0.025% + 400 pA | ||
| 10 μA | 500 pA | 0.03% + 5 nA | 10 μA | 10 pA | 0.025% + 1.5 nA | ||
| 100 μA | 5 nA | 0.03% + 60 nA | 100 μA | 100 pA | 0.02% + 25 nA | ||
| 1 mA | 50 nA | 0.03% + 300 nA | 1 mA | 1 nA | 0.02% + 200 nA | ||
| 10 mA | 500 nA | 0.03% + 6 μA | 10 mA | 10 nA | 0.02% + 2.5 μA | ||
| 100 mA | 5 μA | 0.03% + 30 μA | 100 mA | 100 nA | 0.02% + 20 μA | ||
| 1 A | 50 μA | 0.05% + 1.5 mA | 1 A | 1 μA | 0.03% + 1.5 mA | ||
