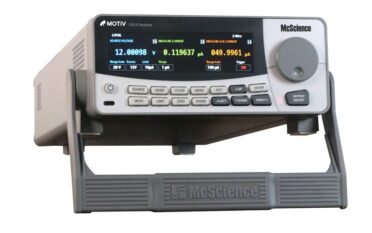

MOTiV 520
IV Analyzer
#Voltage Source Current Measure (VSCM) #Current Source Voltage Measure (CSVM)
#4-Quadrant Operation # I-V Characteristicse #AUX Channel
· ±200V Voltage Range, ±1A Current Range
· Max. 20W Output
· 100uV Voltage Resolution, 100fA Current Resolution
· Setting and Control of Compliance
· Selectable 2-Wire or 4-Wire Signal Connection
· Max. 1V / 10mA AUX Channel
· Various Touch Panel Interface
· LAN / USB Remote Control (Wireless Optional)
Product information
The 520 IV Analyzer is a general-purpose source meter capable of sourcing voltage(current) and measuring current(voltage) with 4-quadrant operation for simultaneous real-time sourcing, sinking, and measurement. Its multi-range architecture andautomatic compliance protection enable stable I-V characterization of advanced electronic devices and materials, while thebuilt-in photocurrent measurement channel supports optical measurements during electrical testing.
High-Precision Sourcing & Measurement
The MOTiV 520 is a high-precision source meter operating across a ±200V voltage and ±1A current range with 100μV / 100fA resolution. With four operating modes — VSCM, VSVM, CSVM, and CSCM — it freely sources and measures voltage and current, reading the source and AUX channel (up to 1V / 10mA) at once, with compliance control and selectable 2-Wire / 4-Wire connection preserving accuracy in fine measurements.

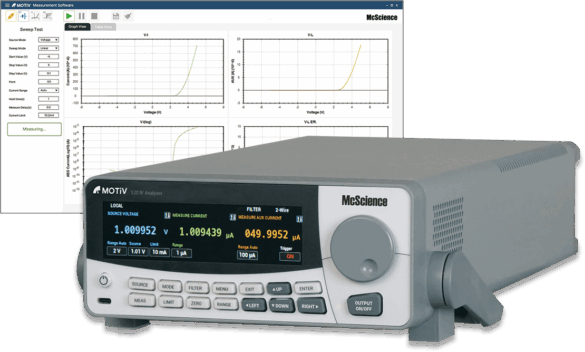

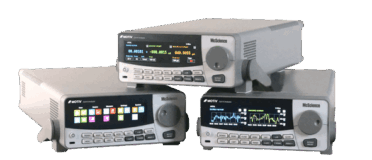

Flexible Graphic Touch Display
The graphic touch display adapts freely to the task — showing a single reading, multiple numeric values, or live waveforms side by side. Waveforms can be zoomed and results reviewed in a time-stamped table, with control by touchscreen, dedicated keys, or dial.
Versatile Measurement Software
The software supports DC measurement, Sweep measurement for tracing device characteristics, and Transfer Curve measurement for transistors. Data is captured in a buffer of over 250,000 samples for immediate on-screen I-V review, and connects to a PC via LAN or USB (wireless optional).
Integrated Photo Sensor Measurement
A built-in photo sensor measurement capability lets you evaluate optical characteristics alongside electrical measurements on a single instrument. This suits devices where optical and electrical behavior must be assessed together, such as solar cells and displays.

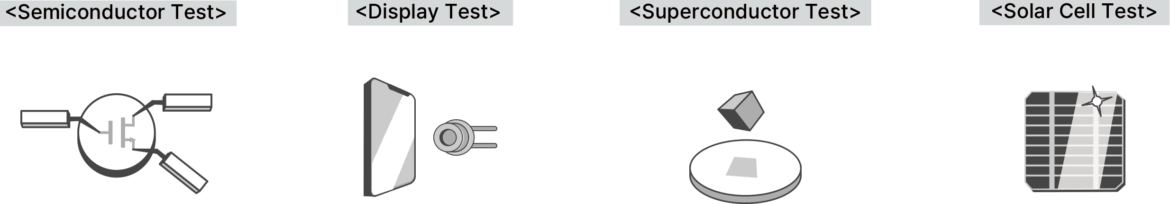

Application
Option
Triaxial Cable
I-V-L JIG
Probe Station
Shield Box
Switching Unit
I-V-L Software
Specification
| Item | General Specification |
| Model Name | MOTiV 520 |

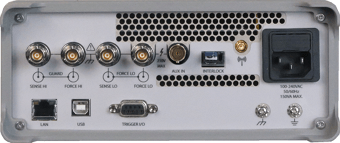

| Port Configuration | Triax 4-Wire, 1ch Aux Input, Digital I/O Trigger |
| Operation Mode | 4-Quadrant Operation, VSCM / VSVM / CSVM / CSCM |
| Memory Buffer | Set List : Max. 10,000 Points, Measurement Buffer : > 250,000 Samples |
| Control Mode | Manual (Touch Panel and Knob Key) / Remote Control |
| Remote Interfaces | Ethernet or USB |
| Size / Weight | 213mm(W) x 403mm(D) x 88.1mm(H) / 3.73Kg |
| Power Requirements | 100~240VAC, Φ1, 50/60Hz, Max. 150VA |
| Accessories | Triaxial to Crocodial Cable, Bundle Software, LAN Communication Cable, Power Cable, User Manual |
| Source Specification | Measurement Specification | ||||||
| Voltage | Range (±) | Resolution | Accuracy ± (% setting + volts) | Voltage | Range (±) | Resolution | Accuracy ± (% reading + volts) |
| 200 mV | 5 uV | 0.02% + 400 μV | 200 mV | 100 nV | 0.015% + 200 μV | ||
| 2 V | 50 μV | 0.02% + 600 μV | 2 V | 1 μV | 0.015% + 300 μV | ||
| 20 V | 500 μV | 0.02% + 5 mV | 20 V | 10 μV | 0.015% + 5 mV | ||
| 200 V | 5 mV | 0.02% + 50 mV | 200 V | 100 μV | 0.015% + 50 mV | ||
| Current | Range (±) | Resolution | Accuracy ± (% setting + amps) | Current | Range (±) | Resolution | Accuracy ± (% reading + amps) |
| 20 nA | 1 pA | 0.15% + 10 pA | 20 nA | 20 fA | 0.15% + 6 pA | ||
| 100 nA | 5 pA | 0.06% + 50 pA | 100 nA | 100 fA | 0.06% + 40 pA | ||
| 1 μA | 50 pA | 0.03% + 700 pA | 1 μA | 1 pA | 0.025% + 400 pA | ||
| 10 μA | 500 pA | 0.03% + 5 nA | 10 μA | 10 pA | 0.025% + 1.5 nA | ||
| 100 μA | 5 nA | 0.03% + 60 nA | 100 μA | 100 pA | 0.02% + 25 nA | ||
| 1 mA | 50 nA | 0.03% + 300 nA | 1 mA | 1 nA | 0.02% + 200 nA | ||
| 10 mA | 500 nA | 0.03% + 6 μA | 10 mA | 10 nA | 0.02% + 2.5 μA | ||
| 100 mA | 5 μA | 0.03% + 30 μA | 100 mA | 100 nA | 0.02% + 20 μA | ||
| 1 A | 50 μA | 0.05% + 1.5 mA | 1 A | 1 μA | 0.03% + 1.5 mA | ||
OLED & Display | Solar Cell & Photovoltaics | Battery & Electrochemical System | Flexible Electronics & Organic Semiconductor | LED & Optical System
