M6000

OLED Lifetime Test System

#OLED #Lifetime #Multi-Channel #Photo-Diode #Constant/Pulse Source #Temperature Acceleration Test


· Multi-Channel Lifetime Test Using Photo-Diode

· Unit Cell / Panel / Module

· DC / Pulse / Pattern

· CC / CV / CL / PCV / PC / PV

· Temperature / Humidity Control

· Compact Test Jig

Product Inquiry

Leaflet Download


Related products

All Optimized for Multi-channel Power Driving Lighting and Measurement of OLED Lifetime

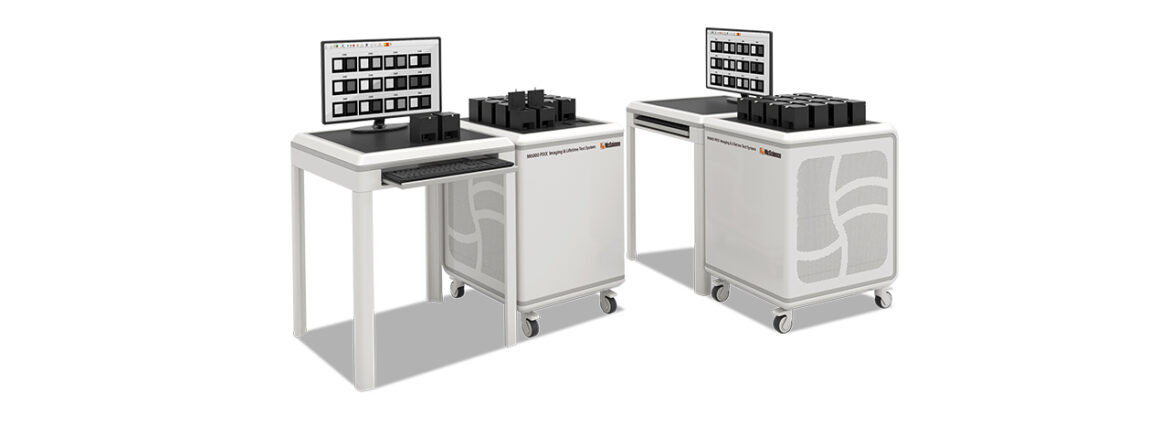

The M6000 OLED Lifetime Test System provides multi-channel testing frame in which power driving for OLED lighting is possible in various control mode, and emitted light intensity and color information can be collected by each photodiode combined to each OLED test sample. Depending on the type of photodiode employed, the measure could be an absolute luminance, or a CIE color index, or just a photocurrent value from the photodiode. The system has three sub-models based on power driving methods, PMX for unit cell device and PMOLED panel, AMX for AMOLED panel, and MDX for OLED module with driver IC.

Multi-Channel Lifetime Test Using Photo-Diode

Unit Cell / Panel / Module

DC / Pulse / Pattern

CC / CV / CL / PCV / PC / PV

Temperature / Humidity Control

Compact Test Jig

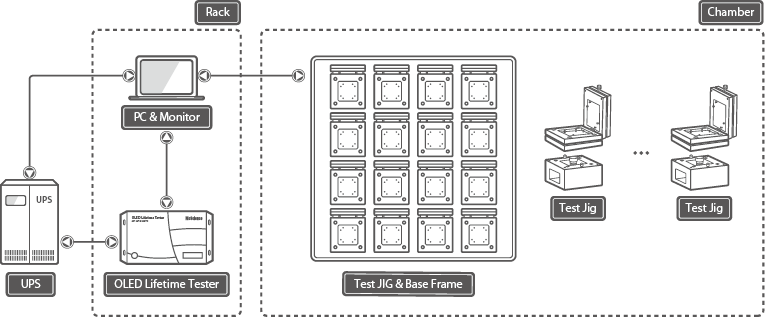

System Configuration

System Components

OLED Lifetime Tester

Test Jig & JIG Frame

ThermoStation/Chamber/UPS

OLED Lifetime Test Software

System Specification

Product ModelM6000 OLED Lifetime Test System
Standard ModelPMX: Unit Cell / AMX: Panel / MDX: Module
System ConfigurationLifetime Tester, JIG and Frame(Drawer Type), Lifetime Test Software, Temperature/Humidity Chamber
Channel4 Channel / 32 Channel / 96 ChannelChannel expandable
SourceModeConstance Voltage / Current, Pulse Voltage / Current, Pulse Current / Voltage
ConstantVoltage: ±20V / Current: Max. ±100mA (User Selectable)
PulseFrequency: 1Hz ~ 256Hz / Duty: 1 ~ 99%
Accuracy±0.1% of Full Scale
Photo Current Measurement0 ~ 100uA
Environment ChamberTemperatureR.T ~ 100℃User Selectable
Humidity10 ~ 90%
Measurement ParameterTime, Voltage, Current, Photo Current, Relative Luminance
Operating ConditionTemperature : 23°C ± 5°C, Humidity : 20 ~ 80% RH(Non-Condensation)
PC InterfaceTCP/IP(LAN), RS-232(Serial)
